Setting up OpenFlow testbed for user-level resource allocation experiments using a number of HP 3800 switches. We use VLAN to bridge OpenStack VMs to physical ports (hence the little connections). After that, its all controlled by software.

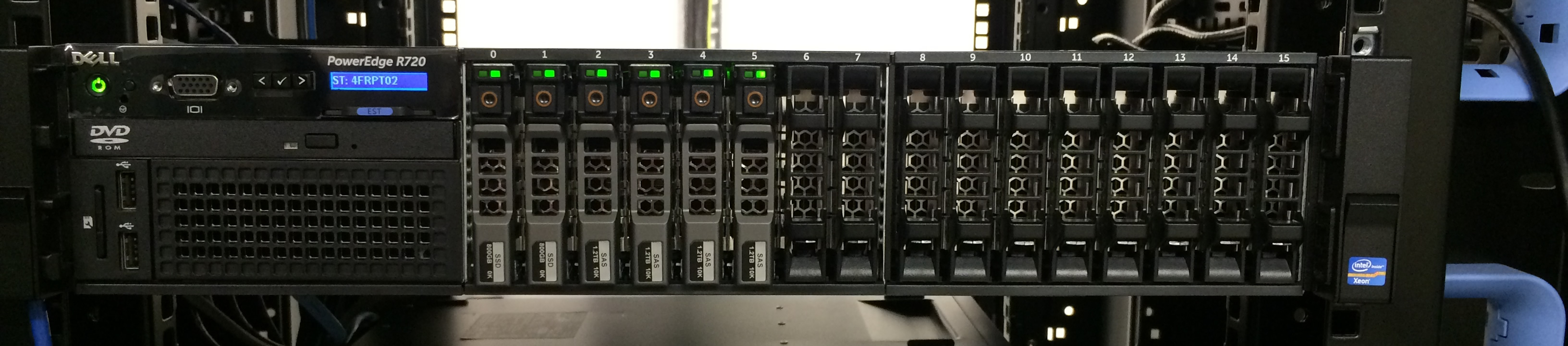

A Dell server running OpenStack virtualization. We used to run it on 5 PCs but R720 is certainly a better choice to scale up your experiments.
